Ranger Professional Power Generators

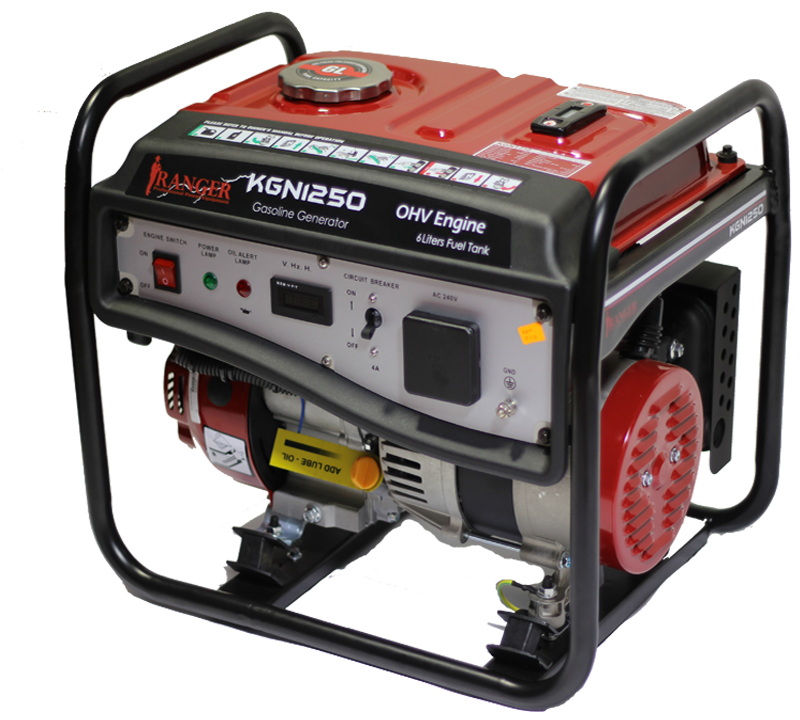

| Running Watts: | 850 |
|---|---|
| Max. Watts: | 1250 |
| Engine(HP): | 3 |
| Engine Displacement: | 4 Stroke, 98cc |
| Engine Type: | OHV |
| Starting Method: | Recoil Pull Start |
| Battery Included: | No |
| Fuel Tank(ltrs): | 10 |
| Digital Multi Meter: | Hz/Voltage/Hour |
| Covered Outlet: | Yes |
| Outlets: | 1x240v |
| Overload Protection(MCB): | Yes |
| Wheels and Handles: | No |

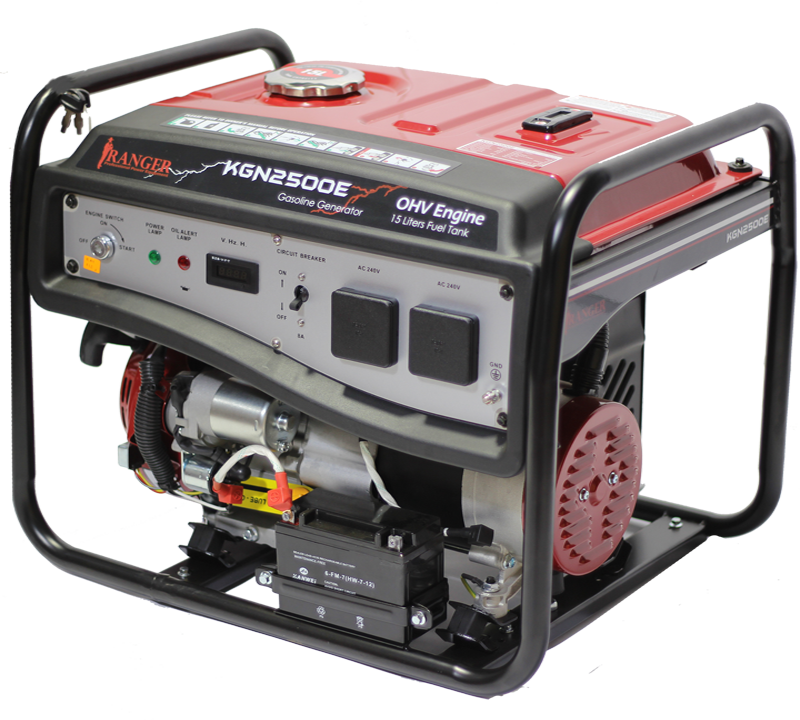

| Running Watts: | 2000 |
|---|---|
| Max. Watts: | 2500 |
| Engine(HP): | 6.5 |
| Engine Displacement: | 196cc |
| Engine Type: | OHV |
| Starting Method: | Recoil Pull Start/Electric |
| Battery Included: | Yes |
| Fuel Tank(ltrs): | 15 |
| Digital Multi Meter: | Hz/Voltage/Hour |
| Covered Outlet: | Yes |
| Outlets: | 2x240v |
| Overload Protection(MCB): | Yes |
| Wheels and Handles: | No |
| Device | Running Watts: | Additional Starting Watts: |
|---|---|---|
| AM/FM Radio | 50 | - |
| Blender | 400 | 450 |
| Box Fan - 20" | 200 | - |
| CD/DVD Player | 100 | - |
| Cell Phone Battery Charger | 25 | - |
| Electric Grill | 1650 | - |
| LED TV 20" | 150 | - |
| Inflator Pump | 50 | 150 |
| Outdoor Light String | 250 | - |
| RV Air Conditioner 1 Ton | 1800 | 700 |
| Slow Cooker | 250 | - |
| Running Watts: | 4500 |
|---|---|
| Max. Watts: | 5500 |
| Engine(HP): | 11 |
| Engine Displacement: | 337cc |
| Engine Type: | OHV |
| Starting Method: | Recoil Pull Start/Electric |
| Battery Included: | Yes |
| Fuel Tank(ltrs): | 25 |
| Digital Multi Meter: | Hz/Voltage/Hour |
| Covered Outlet: | Yes |
| Outlets: | 1x240v, 1x16A |
| Overload Protection(MCB): | Yes |
| Wheels and Handles: | Yes |

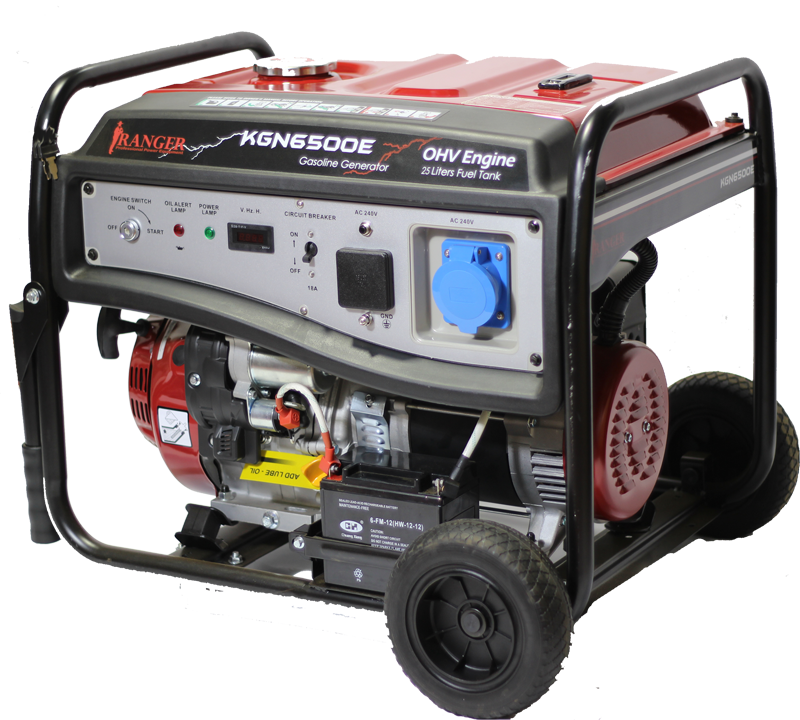

| Running Watts: | 6000 |
|---|---|
| Max. Watts: | 6500 |
| Engine(HP): | 14 |
| Engine Displacement: | 420cc |
| Engine Type: | OHV |
| Starting Method: | Recoil Pull Start/Electric |
| Battery Included: | Yes |
| Fuel Tank(ltrs): | 25 |
| Digital Multi Meter: | Hz/Voltage/Hour |
| Covered Outlet: | Yes |
| Outlets: | 1x240v, 1x16A |
| Overload Protection(MCB): | Yes |
| Wheels and Handles: | Yes |

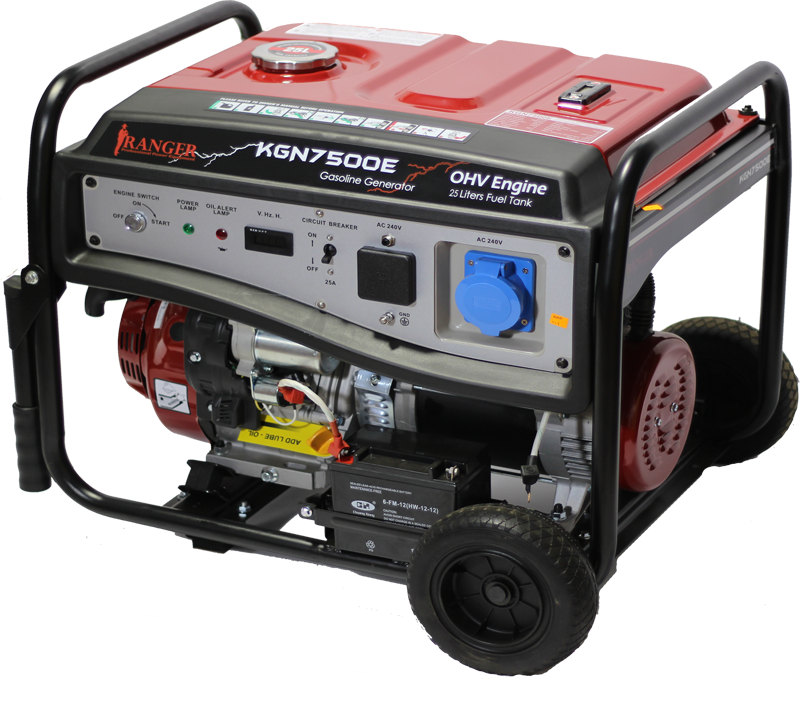

| Running Watts: | 7500 |
|---|---|
| Max. Watts: | 8500 |
| Engine(HP): | 14 |
| Engine Displacement: | 420cc |
| Engine Type: | OHV |
| Starting Method: | Recoil Pull Start/Electric |
| Battery Included: | Yes |
| Fuel Tank(ltrs): | 25 |
| Digital Multi Meter: | Hz/Voltage/Hour |
| Covered Outlet: | Yes |
| Outlets: | 1x240v, 1x16A |
| Overload Protection(MCB): | Yes |
| Wheels and Handles: | Yes |
| Device | Running Watts: | Additional Starting Watts: |
|---|---|---|
| Coffee Maker | 750 | - |
| Computer With a 17" Monitor | 200 | - |
| Electric Clothes Dryer | 5750 | 1800 |
| Electric Cooker - 8" Element | 2100 | - |
| Electric Water Heater | 3000 | 1000 |
| Electric Iron | 875 | - |
| Hair Dryer - 1250 Watt | 1250 | - |
| Light Bulb - 100 Watt | 100 | - |
| Microwave - 1000 Watts | 1000 | - |
| Refrigerator/Freezer | 700 | 2200 |
| Security System | 300 | - |
| Booster Pump 1/2 HP | 375 | 750 |
| Sump Pump 1 HP | 800 | 1500 |
| LED Television - 42” | 60 | - |
| Toaster | 1200 | - |
| Washing Machine | 1150 | 2300 |
| Well Pump - 1/2 HP | 1000 | 2100 |
| Well Pump - 1/3 HP | 750 | - |

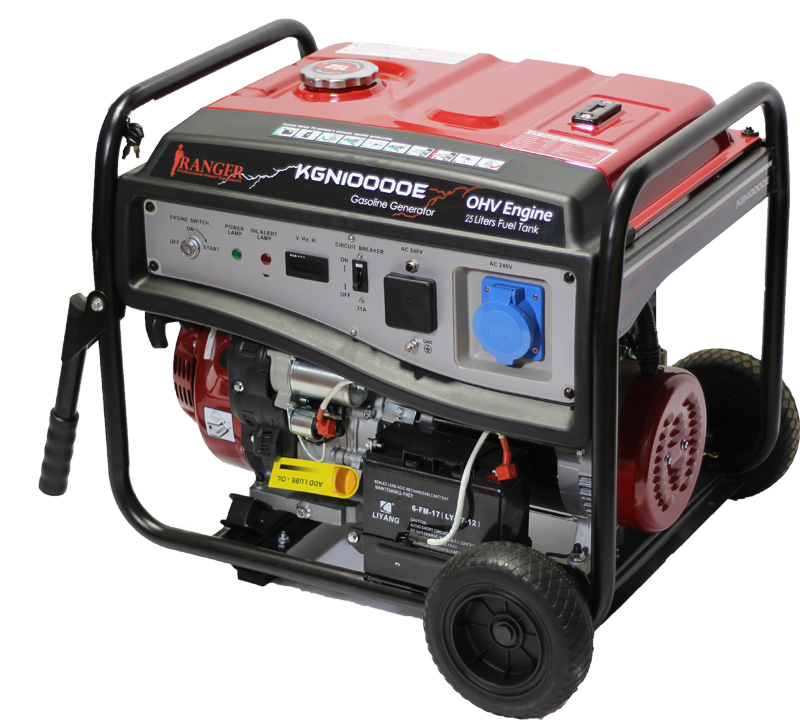

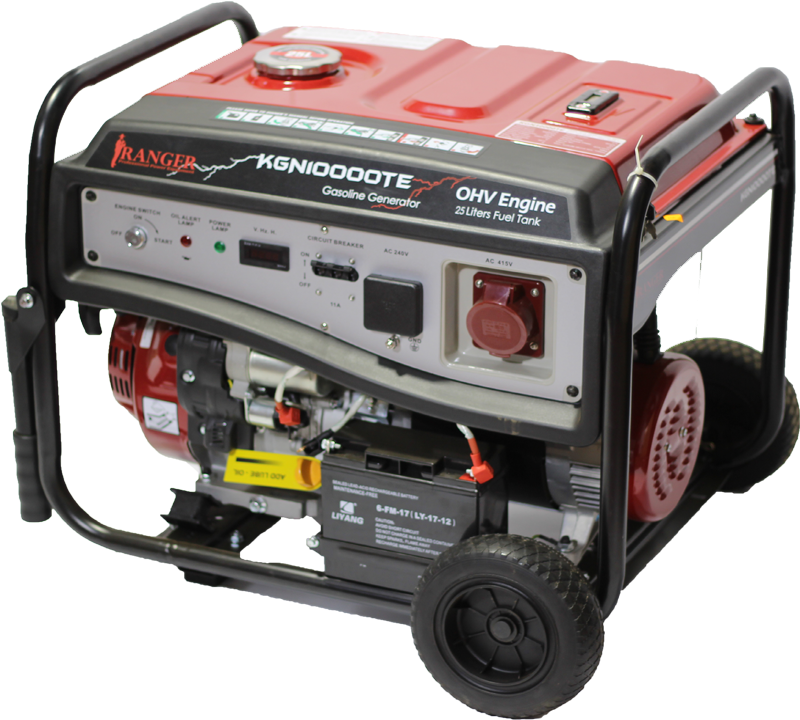

| Running Watts: | 7500 |
|---|---|
| Max. Watts: | 8500 |
| Engine(HP): | 16 |
| Engine Displacement: | 459cc |
| Engine Type: | OHV |
| Starting Method: | Recoil Pull Start/Electric |
| Battery Included: | Yes |
| Fuel Tank(ltrs): | 25 |
| Digital Multi Meter: | Hz/Voltage/Hour |
| Covered Outlet: | Yes |
| Outlets: | 1x240v, 1x32A |
| Overload Protection(MCB): | Yes |
| Wheels and Handles: | Yes |

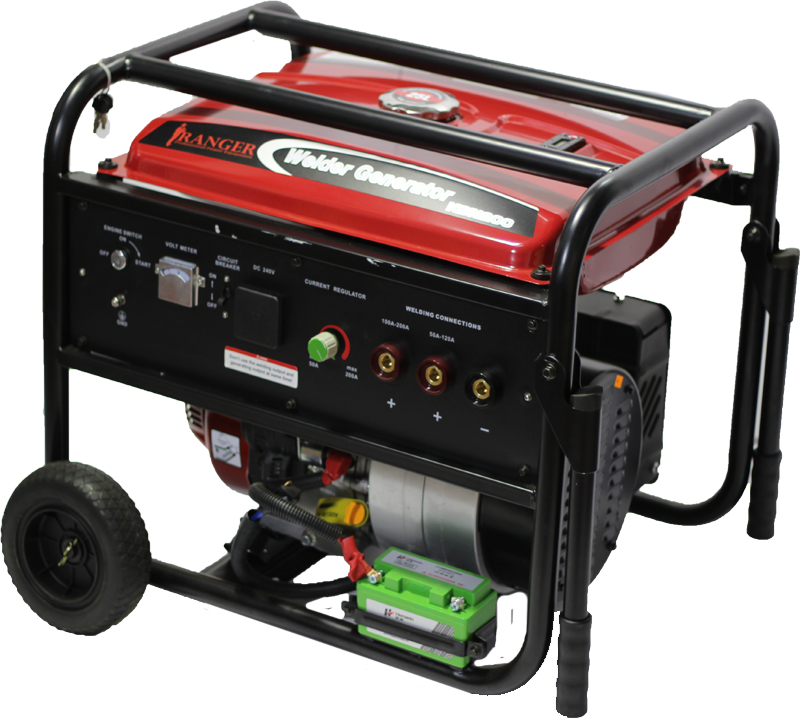

| Rated Load Voltage: | 20-24v |
|---|---|
| None-load Voltage: | 65v |
| Rate Output and Rated Duty Cycle | 60%, 90A |
| Engine Displacement: | 208cc |
| Engine Type: | OHV |
| Starting Method: | Recoil Pull Start |
| Welding Rod Diameter(MM): | 1.5-3.2 |
| Fuel Tank(ltrs): | 25 |
| Rated Voltage: | 230/110v |
| Rated Power: | 2.5KW |
| Max Power: | 2.8KW |
| Overload Protection(MCB): | Yes |
| Wheels and Handles: | No |
| Device | Running Watts: | Additional Starting Watts: |
|---|---|---|
| Air Compressor - 1 HP | 1600 | 4500 |
| Air Compressor - 1/2 HP | 1000 | 2000 |
| Airless Paint Sprayer- 1/3 HP | 600 | 1200 |
| Belt Sander - 3" | 1200 | 2400 |
| Bench Grinder - 8" | 1400 | 1100 |
| Circular Saw - 7-1/4" | 1400 | 2300 |
| Hand Drill - 1/2" | 600 | 900 |
| Hand Drill - 3/8" | 400 | 600 |
| Miter Saw - 10" | 1800 | 1800 |
| Quartz Halogen Work Light | 1000 | - |
| Reciprocating Saw | 960 | - |
| Table Saw, 10" | 2000 | - |

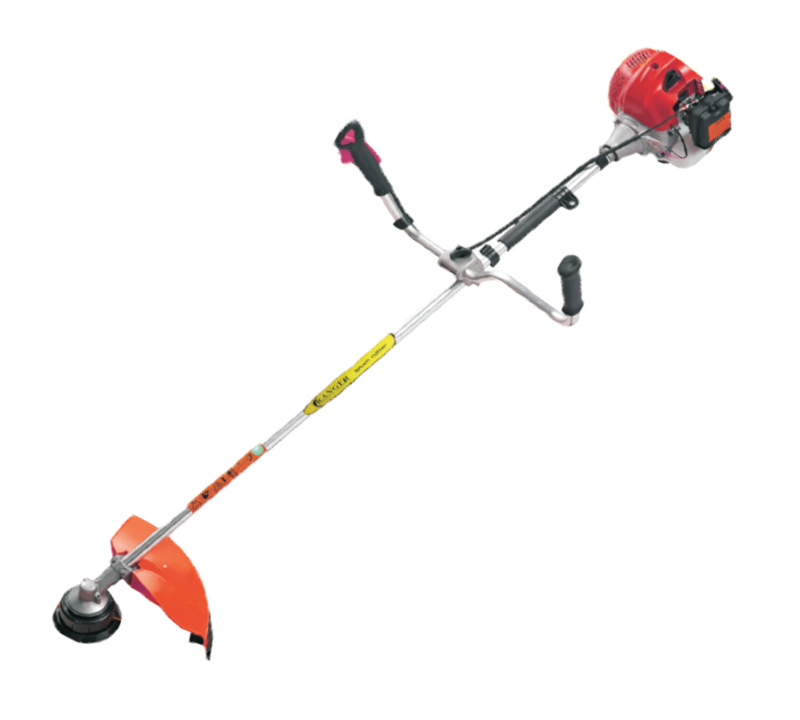

Ranger Professional Garden Equipment

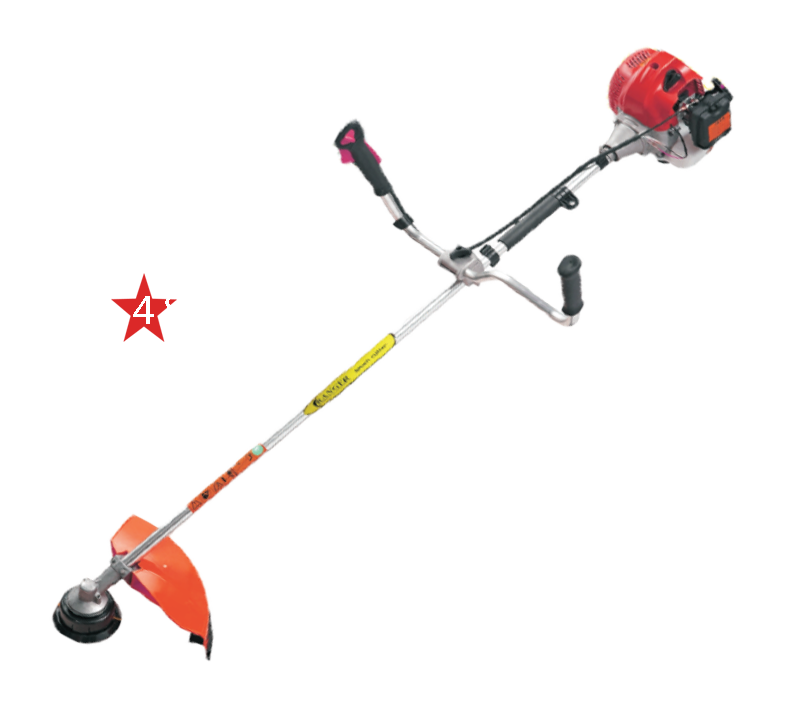

| Engine Model: | 1e44f-2A |
|---|---|
| Engine Power(Kw): | 1.45KW/ 7500r/min |
| Engine Displacement: | 52cc |
| Engine Type: | Single Cylinder, air-cooled. 2-Stroke |
| Starting Method: | Manual |
| Carburetor: | Diaphragm Type |
| Fuel Tank(ltrs): | 1.2 |
| Ratio of Fuel and Lubricant: | 30:1 |
| G/N weight(kg): | 9.5/8.5 |
| Idling Speed(r/min): | 2800-3200 |
| Engine Model: | 1e40f-5A |
|---|---|
| Engine Power(Kw): | 1.25KW/ 6500r/min |
| Engine Displacement: | 43cc |
| Engine Type: | Single Cylinder, air-cooled. 2-Stroke |
| Starting Method: | Manual |
| Carburetor: | Diaphragm Type |
| Fuel Tank(ltrs): | 1.2 |
| Ratio of Fuel and Lubricant: | 30:1 |
| G/N weight(kg): | 7.5 |
| Idling Speed(r/min): | 2800-3200 |
| Engine Model: | 140FA |
|---|---|
| Engine Power(Kw): | 1KW/ 6500r/min |
| Engine Displacement: | 37.7cc |
| Engine Type: | Single Cylinder, air-cooled. 4-Stroke |
| Starting Method: | Manual |
| Carburetor: | Diaphragm Type |
| Fuel Tank(ltrs): | 1 |
| G/N weight(kg): | 9.5/8.5 |

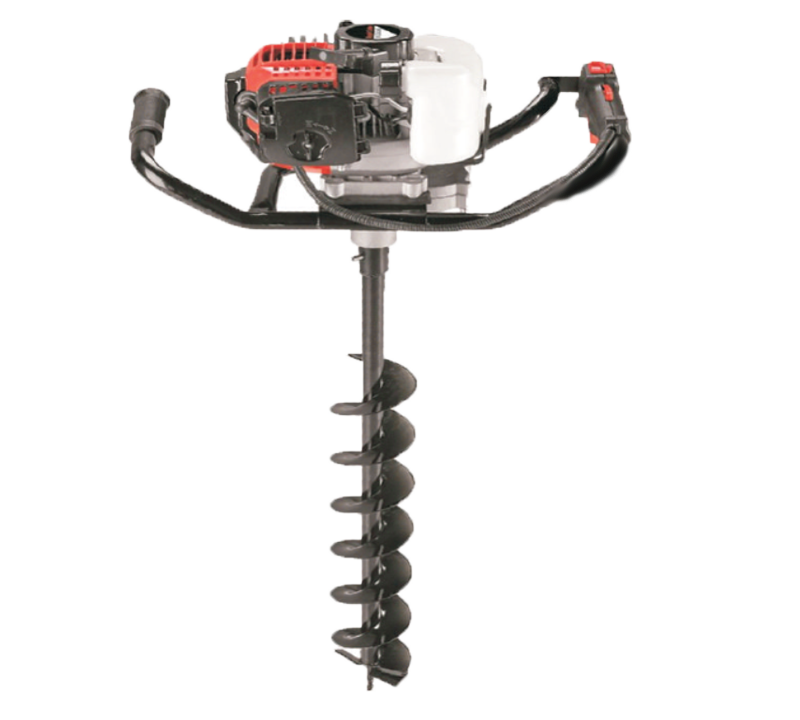

| Engine Model: | 1e44f-5 |
|---|---|
| Engine Power(HP): | 3.0 |
| Engine Displacement: | 52cc |
| Engine Type: | Single Cylinder, air-cooled. 2-Stroke |
| Starting Method: | C.D.J |
| Carburetor: | Diaphragm Type |
| Idling Speed: | 2800rpm |
| Ratio of Fuel Mixed: | 25:1, Gasoline |
| Drill diameter: | 200mm |
| Load Capacity: | 295/612/717(with 150mm drill) |
| Engine Carton(cm): | 62*40*30 |
| Shaft Carton(cm): | 76*15.5*15.5 |

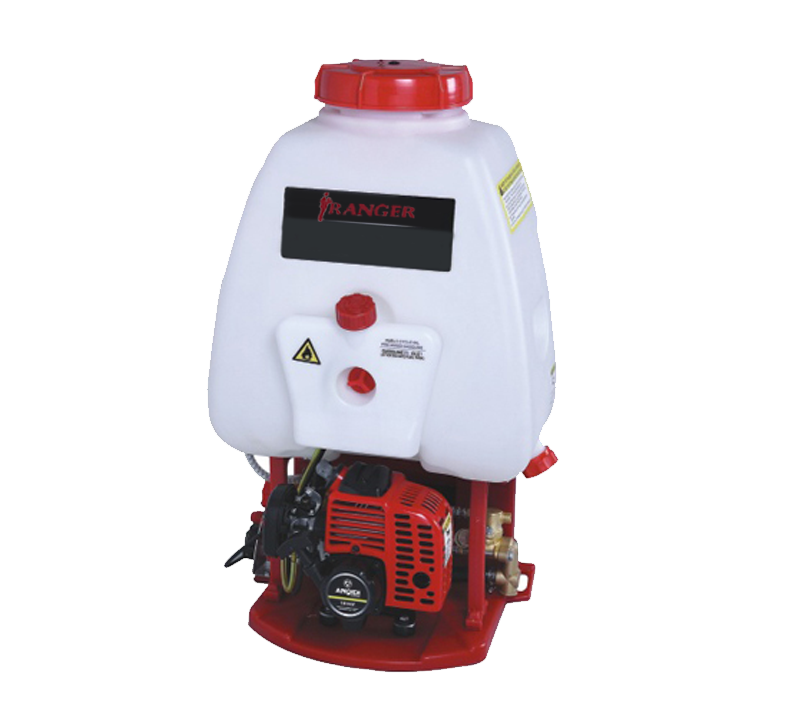

| Engine Model: | 1e32f |
|---|---|
| Engine Power(Kw): | 0.65KW/7500r/min |
| Tank Capacity: | 25 L |
| Oil Tank: | 0.75L |
| Range: | 15M Vertical, 20M Horizontal |
| Spraying Pressure: | 18kg/cm³ |
| Suction: | 7.1L/min |
| Net Weight: | 10Kgs |
| G/N weight(kg): | 12.5/9.7 |
| Packing Size: | 420*350*680 mm |

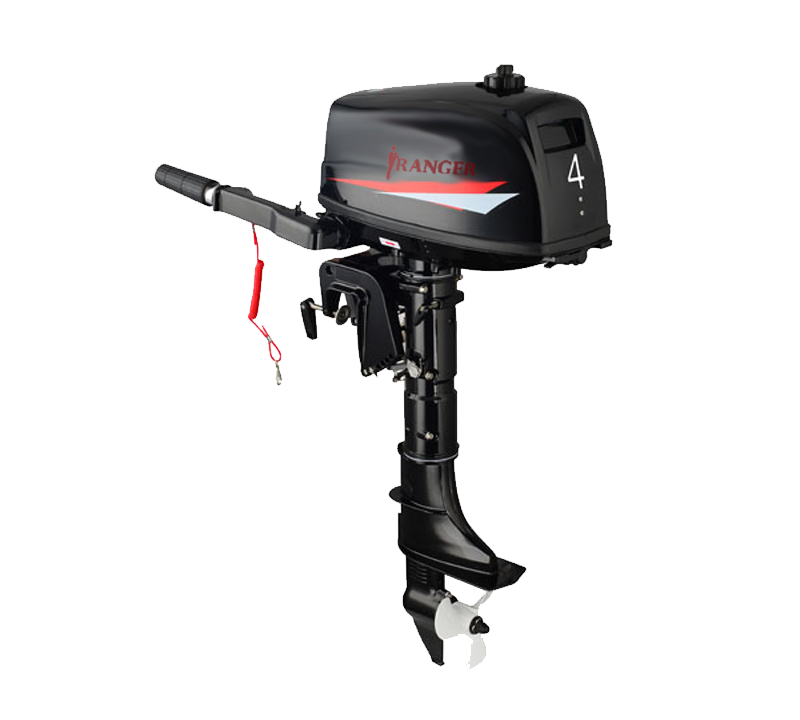

Ranger Professional Outboard Motors

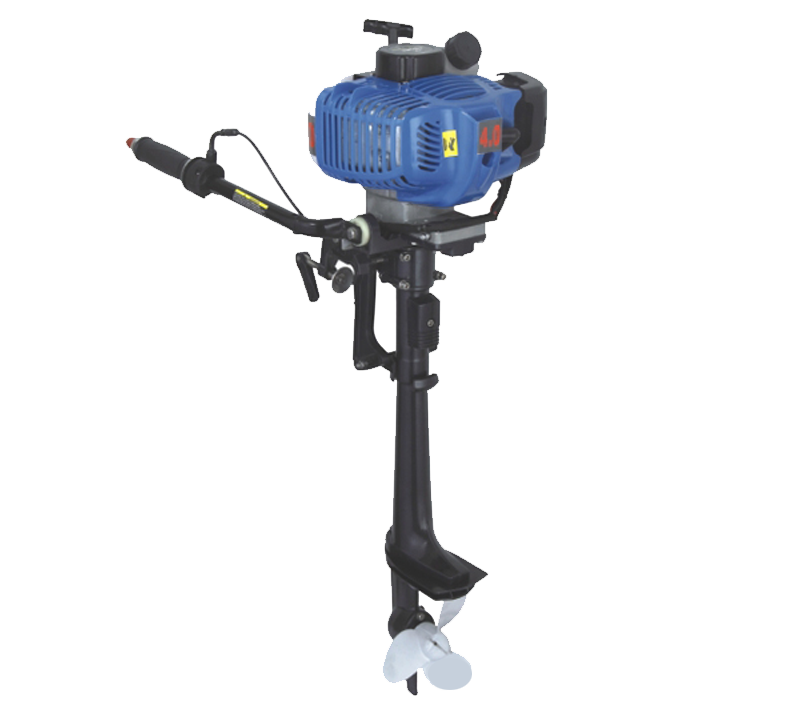

| Engine Model: | 1e44f-5/5B |
|---|---|
| Engine Power(Kw): | 1.45KW/6500r/min |
| Engine Displacement: | 51.7cc |
| Engine Type: | Single Cylinder, air-cooled. 2-Stroke, Gasoline engine |
| Starting Method: | Manual Drawing Wound Rope |
| Control System: | Tiller |
| Transom heigh: | 405～430mm |
| Ratio of fuel mixture: | 30:1 |
| G/N weight(kg): | 12.5/9.7 |
| Transmission System: | Gear and Clutch Control |
| Packing Size: | 95*41*27cml |
| Engine Type: | 2 Stroke |
|---|---|
| Max. Power Output [kw(ps)/r/min]: | 2.9(4.0)@5000 |
| Engine Displacement: | 102cc |
| Bore×Stroke(mm) : | 55.0×43.0 |
| Gear Ratio: | 2.08(27/13) |
| Transom Height(mm): | 435/562 |
| Idling Speed: | 2800rpm |
| Fuel Tank(L): | 2.5 |
| Propeller Size(in): | 3-7 1/2×8 |
| Load Capacity: | 295/612/717(with 150mm drill) |
| Packing Size(mm): | 1110×600×405 |

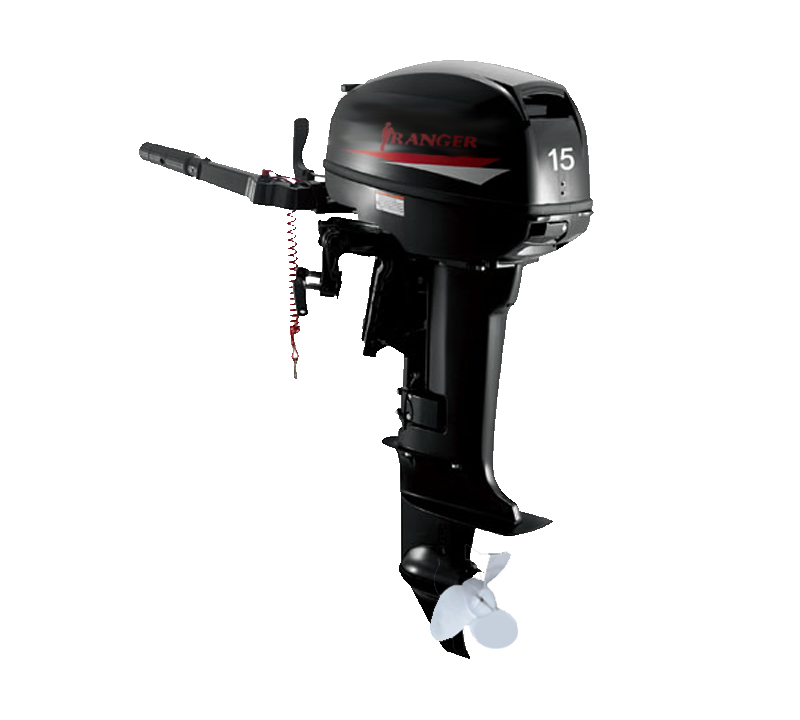

| Engine Type: | 2 Stroke |
|---|---|
| Max. Power Output [kw(ps)/r/min]: | 11(15)@5000 |
| Engine Displacement: | 246cc |
| Bore×Stroke(mm) : | 56.0×50.0 |
| Gear Ratio: | 2.08(27/13) |
| Transom Height(mm): | 440/567 |
| Idling Speed: | 900-1000rpm |
| Fuel Tank(L): | 24 |
| Propeller Size(in): | 3-9 1/4"×9" |
| Packing Size(mm): | S:1220×720×410 / L: 1330×720×410 |
